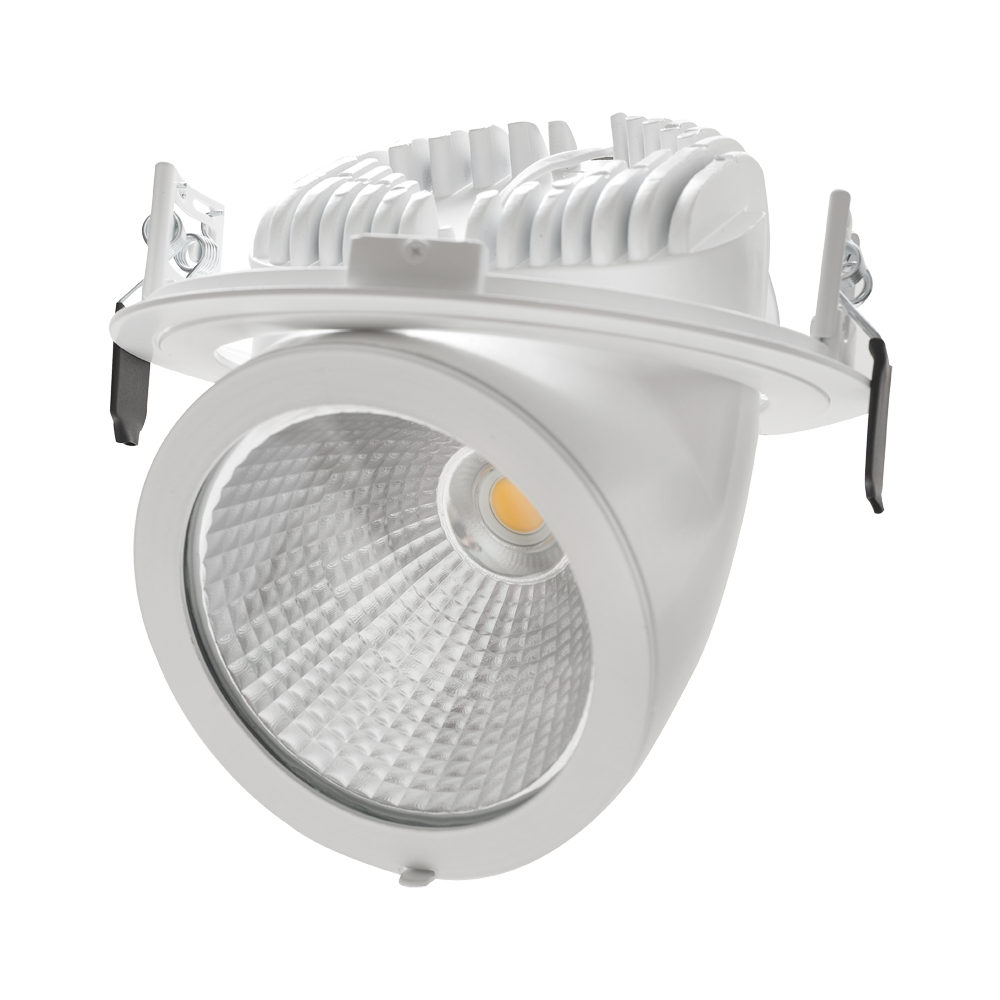

9701 Series Gimbal Recesed LED Downlight
Features
• 50.000 hrs L70 performance
• Flicker-free
• 15, 24, 36, 48 beam angle anodized aluminum reflector
• Tempered glass
• Aluminum injection body
• Up to %50 energy saving
• 220-240V input voltage
• Active PFC >0.9 and THD < %10 with input filtering circuits
• EN60598 compliant
• 3000K, 4000K, 6500K, CRI >80
• Cut-out diameter Ø180mm
• 85 degree tiltable
Applications
• Accent lighting
Options
• 2700K, 3000K 90CRI, Pure White
• Custom paint based on customer RAL color code
• 1hr, 3hrs emergency kit option
• DALI
-
Product ID Power Light Flux Weight
9701-119 20.0W 1950LM 1800gr
9701-130 31.0W 3200LM 1800gr
9701-140 36.0W 3700LM 1800gr


ODSEL

ODSEL Elektronik San. Tic. A.S
