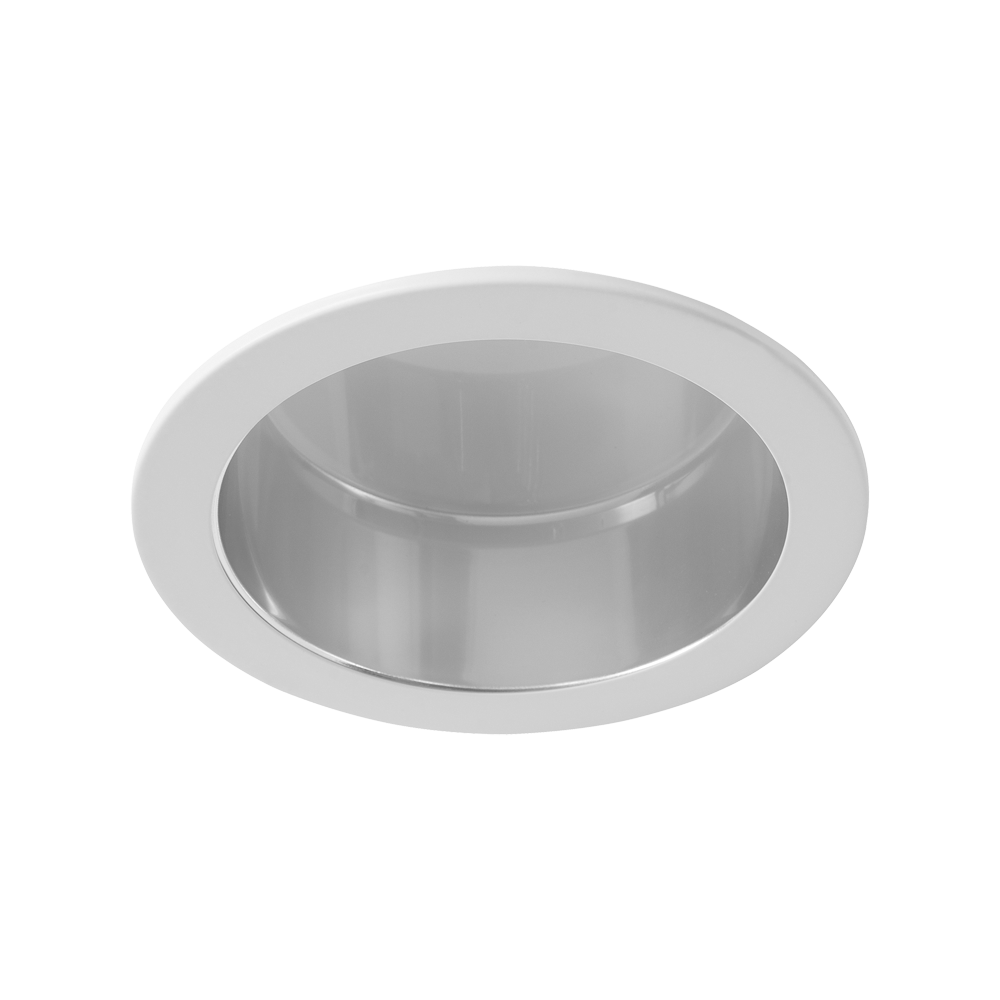

9501 Recessed Instep LED Downlight
Features
• Advanced glare control with deep reflector, UGR < 19
• 50.000 hrs L70 performance
• Flicker-free
• PMMA high efficiency diff user
• Anodized aluminum reflector
• Up to %50 energy saving
• 220-240V input voltage
• Active PFC >0.9 and THD < %10 with input fi ltering circuits
• EN60598 compliant
• 3000K, 4000K, 6500K, CRI >80
• Cut-out diameter Ø220mm
Applications
• General lighting
Options
• 2700K, 5700K
• Custom paint based on customer RAL color code
• 1hr, 3hrs emergency kit option
• DALI

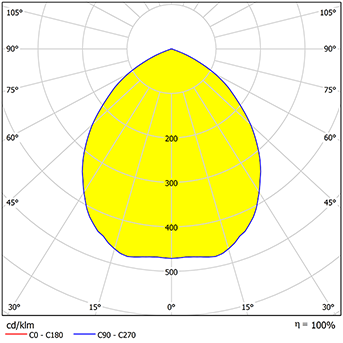

Light Distributions
Dimensions
Product ID Power Light Flux Weight
9501-118 20.0W 1950LM 760gr


ODSEL

ODSEL Elektronik San. Tic. A.S
