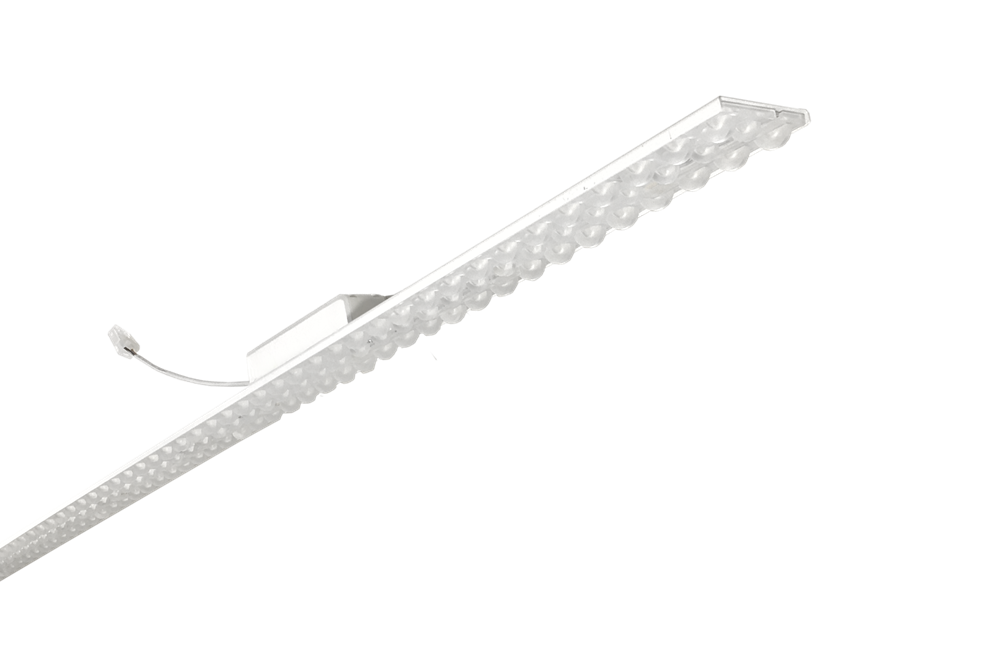

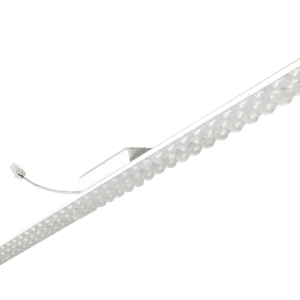

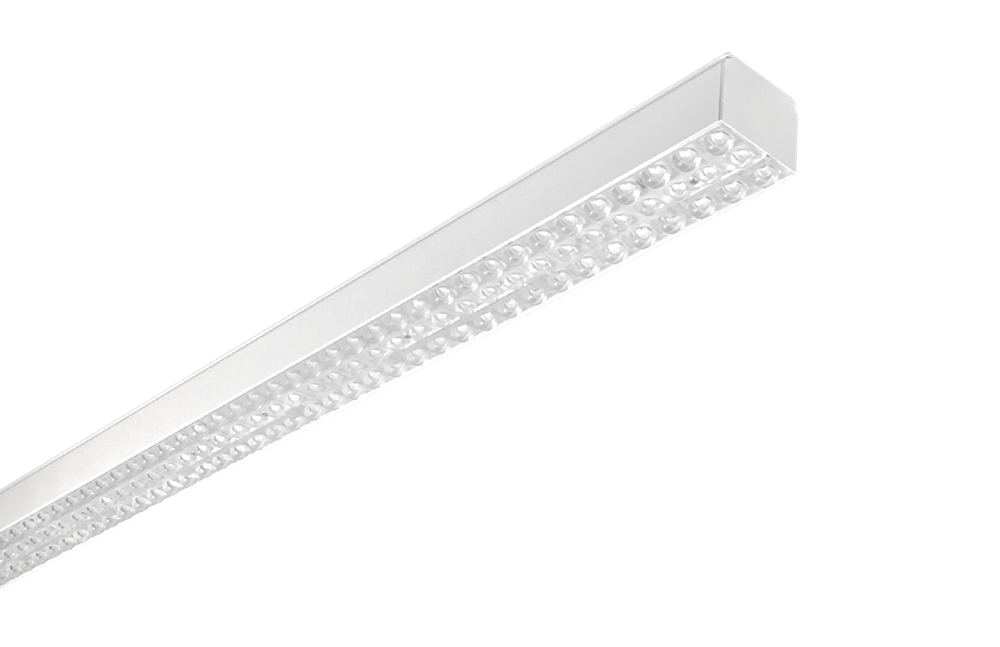

2709 Series Trunking LED Luminaire
Features
• Continuous linear lighting
• Up to 150lm/W ultra efficiency
• 5 conductor, multi-phase energy transfer system
• Easy maintenance with LED Module+LED Driver gear tray with socket
• Trunking unit length options 1435mm or 2870mm
• Easy phase selection with connector system
• %50 energy saving
• Active PFC >0.9 ve THD < %10 input filters
• Aluminum body • EN60598 compliant
• 3000K, 4000K, 6500K, CRI >80
• Min 50.000 on/off cycles
Applications
• Supermarkets, factories
Options
• 2700K, 5700K
• Steel suspension cord
• Emergency battery kit
• DALI
• Empty module cover
• Custom paint color based on customer RAL Codes
• Continuous linear lighting
• Up to 150lm/W ultra efficiency
• 5 conductor, multi-phase energy transfer system
• Easy maintenance with LED Module+LED Driver gear tray with socket
• Trunking unit length options 1435mm or 2870mm
• Easy phase selection with connector system
• %50 energy saving
• Active PFC >0.9 ve THD < %10 input filters
• Aluminum body • EN60598 compliant
• 3000K, 4000K, 6500K, CRI >80
• Min 50.000 on/off cycles
Applications
• Supermarkets, factories
Options
• 2700K, 5700K
• Steel suspension cord
• Emergency battery kit
• DALI
• Empty module cover
• Custom paint color based on customer RAL Codes

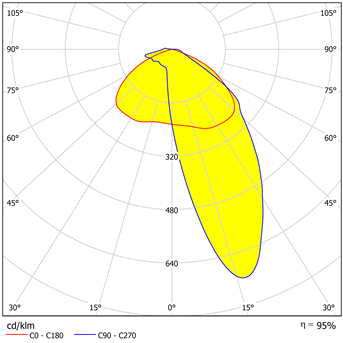

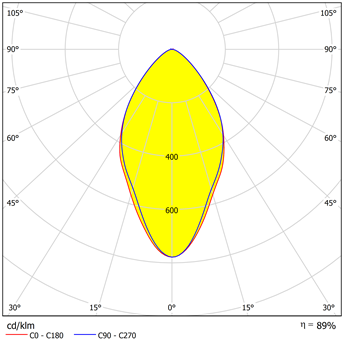

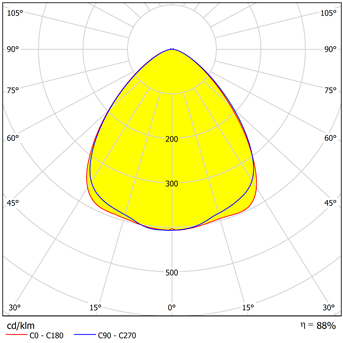

Light Distributions

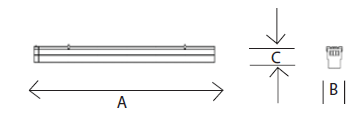

Dimensions
| Product ID | Input Voltage V | Power | PFC | Life Hrs | Operating Temp. | Light Flux | Dimensions | Light Dist. | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | Weight | ||||||||
| 2709-180-MR1 | 220-240V | 35W | 0.95 | 50.000 | 5C +45C | 4450LM | 1435 | 70 | 58 | 3500gr | Symmetric Aisle |
| 2709-180-AS1 | 220-240V | 35W | 0.95 | 50.000 | 5C +45C | 4450LM | 1435 | 70 | 58 | 3500gr | Asymmetric Aisle |
| 2709-180-060 | 220-240V | 35W | 0.95 | 50.000 | 5C +45C | 4250LM | 1435 | 70 | 58 | 3500gr | 60 degree |
| 2709-180-090 | 220-240V | 35W | 0.95 | 50.000 | 5C +45C | 4250LM | 1435 | 70 | 58 | 3500gr | 90 degree |
| 2709-181-MR1 | 220-240V | 38W | 0.95 | 50.000 | 5C +45C | 5100LM | 1435 | 70 | 58 | 3500gr | Symmetric Aisle |
| 2709-181-AS1 | 220-240V | 38W | 0.95 | 50.000 | 5C +45C | 5100LM | 1435 | 70 | 58 | 3500gr | Asymmetric aisle |
| 2709-181-060 | 220-240V | 38W | 0.95 | 50.000 | 5C +45C | 4900LM | 1435 | 70 | 58 | 3500gr | 60 degree |
| 2709-181-090 | 220-240V | 38W | 0.95 | 50.000 | 5C +45C | 4900LM | 1435 | 70 | 58 | 3500gr | 90 degree |
| 2709-254-MR1 | 220-240V | 59W | 0.95 | 50.000 | 5C +45C | 6800LM | 1435 | 70 | 58 | 3500gr | Symmetric Aisle |
| 2709-254-AS1 | 220-240V | 59W | 0.95 | 50.000 | 5C +45C | 6800LM | 1435 | 70 | 58 | 3500gr | Asymmetric aisle |
| 2709-254-060 | 220-240V | 59W | 0.95 | 50.000 | 5C +45C | 6500LM | 1435 | 70 | 58 | 3500gr | 60 degree |
| 2709-254-090 | 220-240V | 59W | 0.95 | 50.000 | 5C +45C | 6500LM | 1435 | 70 | 58 | 3500gr | 90 degree |
| 2709-255-MR1 | 220-240V | 58W | 0.95 | 50.000 | 5C +45C | 7700LM | 1435 | 70 | 58 | 3500gr | Symmetrick aisle |
| 2709-255-AS1 | 220-240V | 58W | 0.95 | 50.000 | 5C +45C | 7700LM | 1435 | 70 | 58 | 3500gr | Asymmetric aisle |
| 2709-255-060 | 220-240V | 58W | 0.95 | 50.000 | 5C +45C | 7400LM | 1435 | 70 | 58 | 3500gr | 60 degree |
| 2709-255-090 | 220-240V | 58W | 0.95 | 50.000 | 5C +45C | 7400LM | 1435 | 70 | 58 | 3500gr | 90 degree |
